Hydrohammer S-500 Rental

Explore the powerful hydraulic impact hammer for your next project.

Download Datasheet
Contact Us

Our Services

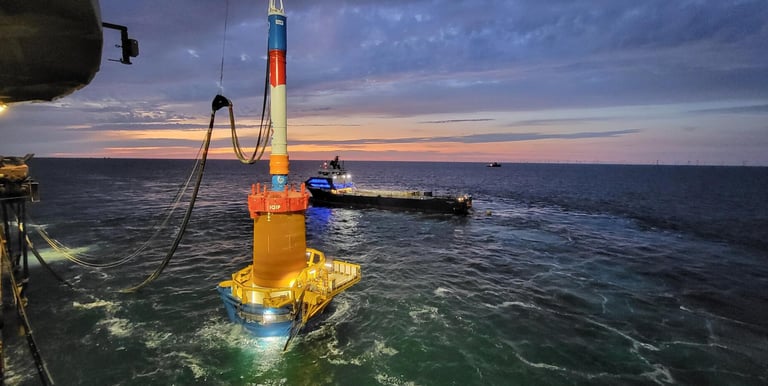

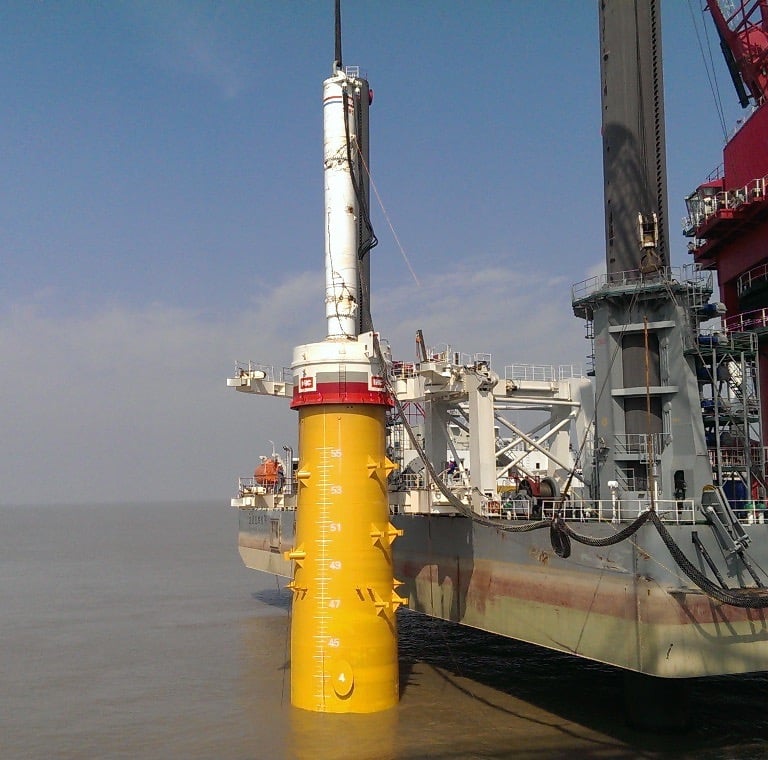

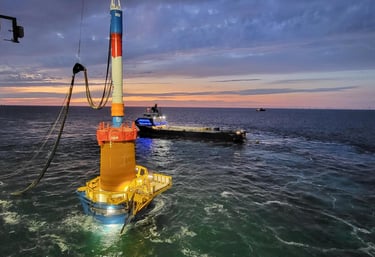

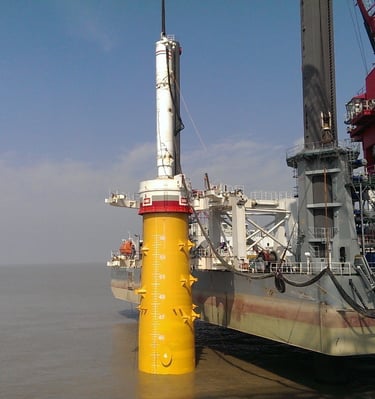

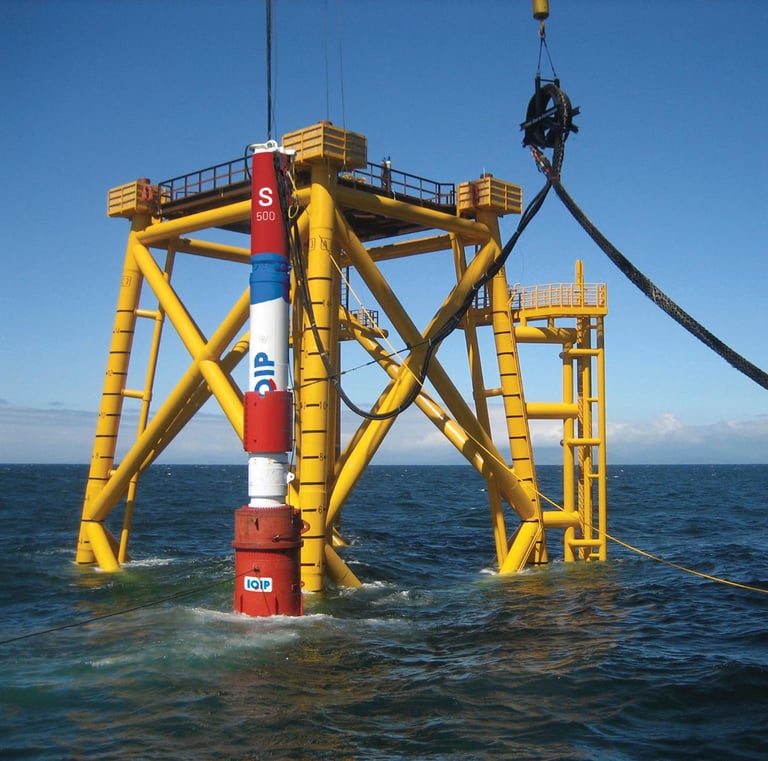

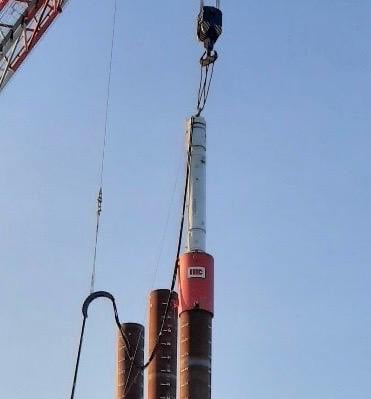

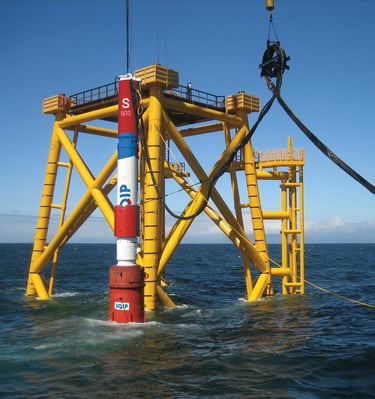

The Hydrohammer S-500 is a powerful hydraulic hammer for pile driving, suitable for both land and underwater operations (up to a depth of around 285 m).

It is used in the construction of coastal structures, platforms, monopiles, marine foundation structures, etc.

Design Features and Control

  • Forged body and ram from a single piece — ensures reliability and reduces wear.

  • Monitoring and control: all hydraulic functions are electronically controlled; pressure, impact energy, number of blows, ram position, etc. are monitored.

  • Safety: hammer automatically stops if:

    • incorrectly positioned on the pile shoe,

    • set energy is exceeded,

    • excessive pile penetration speed occurs.

  • Flexible operation at any angle (0–90°), including horizontal and inclined piles.

  • Modular design for easier access to components and maintenance.

Main Technical Specifications

  • Maximum impact energy: 500 kNm (kilonewton-meters)

  • Minimum impact energy: ~50 kNm (adjustable within ~5–100% of max.)

  • Impact frequency (at maximum energy): ~45 blows/min

  • Hammer weight (with ram):

    • In air: 90 t

    • Underwater: 74 t

  • Ram weight: approx. 25 t

  • Operating pressure: 300 bar

  • Maximum pressure: up to 350 bar

Rent a Modern Hydraulic Hammer — Fast Delivery & Expert Service

Hydrohammer S-500

Explore our gallery showcasing the Hydrohammer S-500 in action.

An orange excavator with a large arm and bucket is parked on a dirt surface. The machine is branded with 'Hitachi' and has visible tracks suitable for maneuvering on rugged terrains. In the background, there's a corrugated metal structure and some trees against a clear blue sky.
An orange excavator with a large arm and bucket is parked on a dirt surface. The machine is branded with 'Hitachi' and has visible tracks suitable for maneuvering on rugged terrains. In the background, there's a corrugated metal structure and some trees against a clear blue sky.
A construction excavator arm with a yellow hydraulic excavator bucket dips into a clear, shallow river surrounded by dense forest. The surrounding environment is lush with green leaves and trees, creating a natural setting.
A construction excavator arm with a yellow hydraulic excavator bucket dips into a clear, shallow river surrounded by dense forest. The surrounding environment is lush with green leaves and trees, creating a natural setting.
A large yellow excavator is positioned on a rocky terrain with snow-capped mountains and pine trees in the background. The metal arm of the excavator is extended prominently, showcasing the machinery's hydraulic components against a natural landscape.
A large yellow excavator is positioned on a rocky terrain with snow-capped mountains and pine trees in the background. The metal arm of the excavator is extended prominently, showcasing the machinery's hydraulic components against a natural landscape.

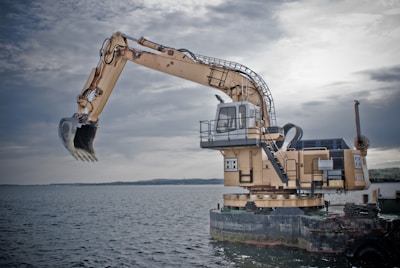

A large industrial excavator is positioned on a floating platform on a body of water. The excavator has a long articulated arm with a claw-like bucket, and a cabin for the operator. The platform appears to be a barge, indicating use for dredging or construction in aquatic environments. The sky is overcast, casting a muted light over the scene.
A large industrial excavator is positioned on a floating platform on a body of water. The excavator has a long articulated arm with a claw-like bucket, and a cabin for the operator. The platform appears to be a barge, indicating use for dredging or construction in aquatic environments. The sky is overcast, casting a muted light over the scene.

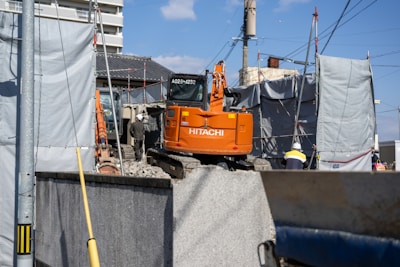

An orange Hitachi excavator is parked in a construction site surrounded by gray covered structures. A construction worker wearing a helmet stands near the vehicle. The background shows some residential or commercial buildings and a utility pole with overhead wires.
